489 Cave
Muela 30T 45417 479682 Alt. 617m Length 211m  Vertical range: -6 to +7m

Updated 17th October 2003; 10th October 2004

The cave is in a 20m high cliff face with bushes and has been marked M22 by SEAD. The entrance is 5 x 8m. A walking size passage lowers to a draughting tube which has been dug to lowish passage with straws and stal.

A sediment sample has been taken.

In the summer of 2003, the draughting eye-hole at the end of the 94 extension was opened up and a further extension made at essentially the same level. The extensions, by members of the Derbyshire Caving Club, are described on the DCC web site and summarised here.
The extension consists of a continuation of the main passage which is about 5 metres diameter and phreatic in origins. This has been filled with mud and calcite in various phases and in parts only the top section is accessible, hence the dig and two squeezes dug through. However, in the extension, two separate inlets have washed out the infill and left sizeable chambers. The passage continues after the second chamber but is filled to the roof and has no draught. The first chamber has a second inlet and both get too narrow. The best prospect is the outlet in the first chamber where the draft emerges. This has been dug briefly and a return visit would be worthwhile, especially as it hints at a deeper level for the cave. Between the two chambers is a low passage on two levels divided by a false floor. Above this is another inlet which has been explored for a short distance.
In the final chamber, the way on is blocked to the roof but there is also an aven and hole in the floor which were looked at in 2004. Work continues.

References: material in file; anon., 1992b (logbook); anon., 1994b (logbook); Corrin J, 1994b (survey); anon., 1995c (logbook); anon., 2000c (Summer logbook); anon., 2003c (summer logbook); anon., 2004d (summer logbook); anon., 2005c (autumn logbook)
Entrance pictures : old  new  view from the entrance   2003 DCC team in the entrance

Digital pictures 2004 A1: View from entrance (Alternative DCC) A2: Pavol Cerven in the entrance (Pavol Cerven) A3: Peter Carný in the entrance (Pavol Cerven)
	1	2	3
A

Underground picture(s):

Digital photos 2004 by the Alternative DCC (A1-A3) and Pavol Cerven (B1-F3) with Jana Cervenová and Billy Booth (B1) A1, A2: Roy Hayes remembrance A3: View out of the entrance B1-F3: Formations - some with available light
	1	2	3
A
B
C
D
E
F

Digital pictures in the 2003 extension by Nigel Dibben with members of the DCC. Click to enlarge.

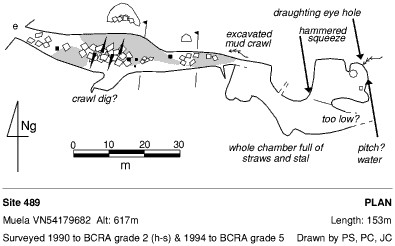

Detailed Survey : 1:1000 (1990 and 1994)   1:500 (with the 2003 extensions)
Line Survey :
Videos : by Nigel Dibben new exploration (5.6Mb)  digging (1.8Mb)
On area survey :
Survex file :
